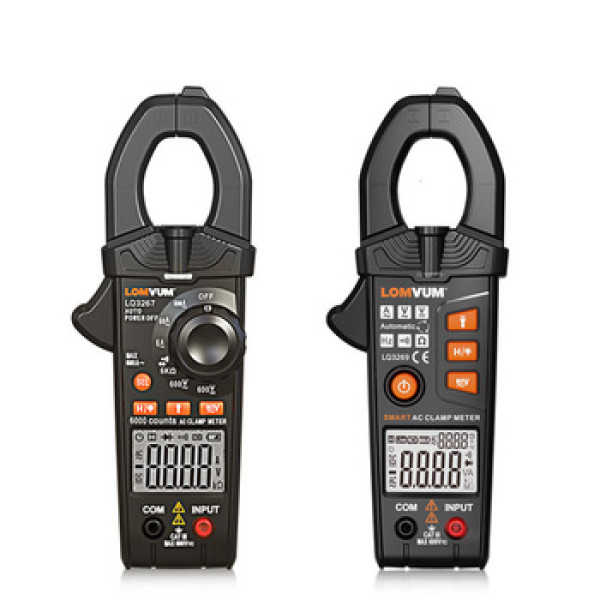

LQ3267/ LQ3269 LOMVUM Digital Clamp Meter Multimeter Mini AC/DC Current Voltage AutoRange Non-Contact 5999 Count 600A Ohm Current Voltage Tester

LQ3267/ LQ3269 LOMVUM Digital Clamp Meter Multimeter Mini AC/DC Current Voltage AutoRange Non-Contact 5999 Count 600A Ohm Current Voltage Tester

LQ3267/ LQ3269 LOMVUM Digital Clamp Meter Multimeter Mini AC/DC Current Voltage AutoRange Non-Contact 5999 Count 600A Ohm Current Voltage Tester
CategoriesTest Instruments
AlbumView larger image
BrandLOMVUM
ModelLQ3267/ LQ3269
Update Time2021-04-17
Detail Information
Place of Origin: China
Brand Name: LOMVUM
Model Number: LQ3267/LQ3269
Display Type: Digital Only
Measuring Current Range: 6A-10A
Measuring Voltage Range: 6V-600V
Measuring Resistance Range: 600Ω-60MΩ
Measuring Capacitance Range: DC 0-600V AC 0-400V
Measuring Inductance Range: AC 0-200-400A
Operating Temperature: 0-40℃
Dimensions: 185MM*70MM*34MM
Weight: 210G
Frequency (Ture RMS): 60HZ-1000HZ
Safety Level: 600V CAT III
Model
MANUAL TYPE - LQ3267
AUTO TYPE - LQ3269
Maximum display value
6000 Counts
6000 Counts
DC/AC Voltage
6V-600V
6V-600V
AC Current Only
6A-10A
6A-10A
Resistance
6KΩ
600Ω-60MΩ
Operation
Manual Range
Auto Range
Frequency (Ture RMS)
X
60HZ-1000HZ
Capacitance
X
X
Temperature
X
X
Flashlight
YES
YES
NCV
YES
YES
Backlight Function
YES
YES
Diode Test
YES
YES
On-off Test
YES
YES
Overload Protection
YES
YES
Low Battery Indicator
YES
YES
Clamp Maximum Opening
25mm
25mm
Safety Level
600V CAT III
600V CAT III
Size
185*70*34mm
185*70*34mm
Power Supply
2pcs*1.5VAAA battery(not included)
2pcs*1.5VAAA battery(not included)
